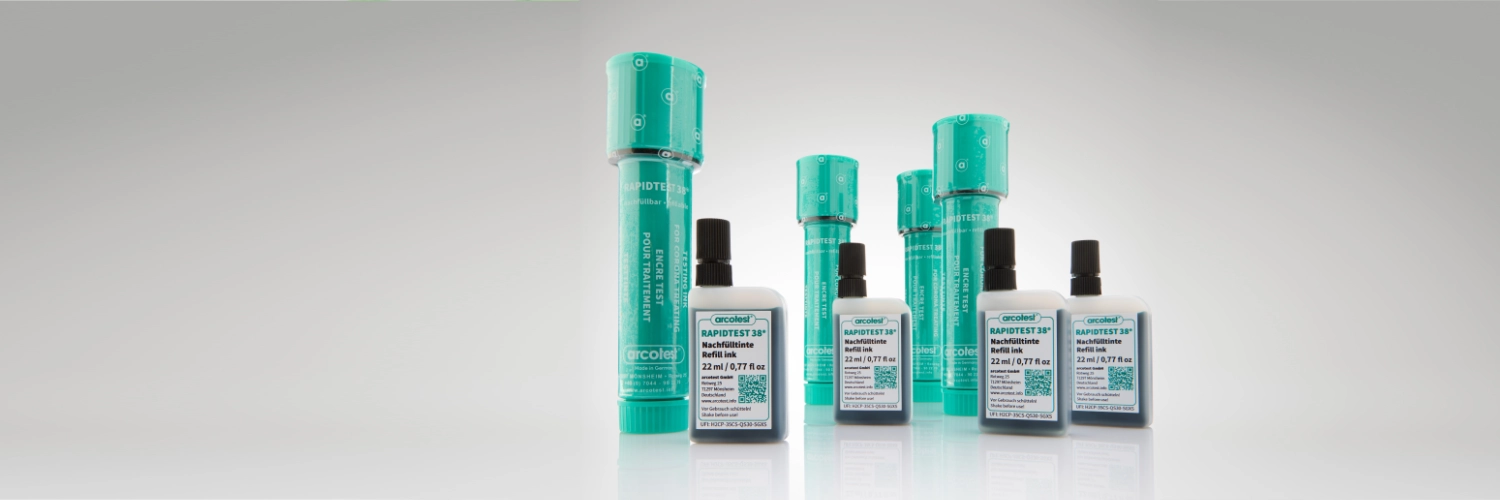

RAPIDTEST-refill

RAPIDTEST® Refill Ink
to check the treatment
of polyolefins

previous arrow
next arrow

Dyne Test Inks and Dyne Test Pens

For testing the surface tension.
To determine the cleanliness
of surfaces.

Dyne Test Inks can make statements on the adhesive strength of printing inks, coatings and adhesives on all surfaces such as plastic, metal and glass as well as on the degree of cleanliness in dyne/cm (mN/m).

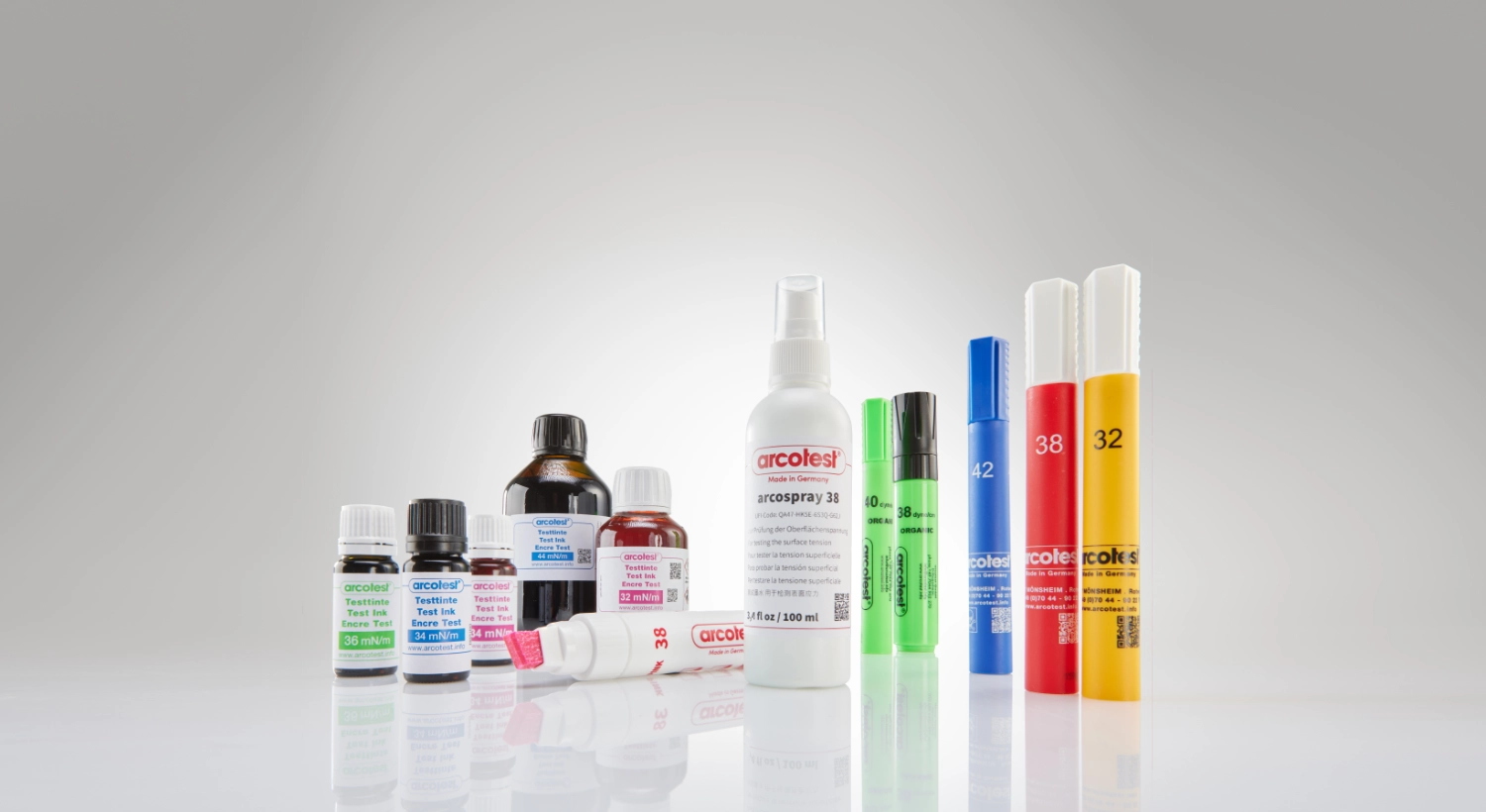

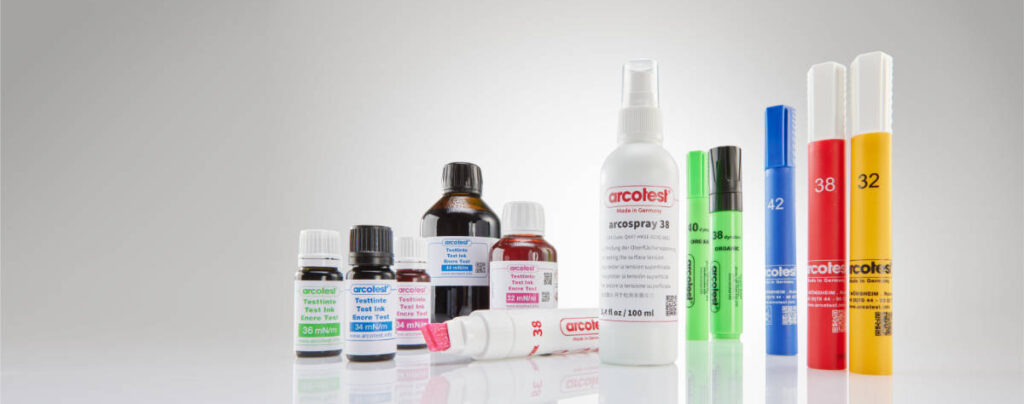

Dyne Test Inks

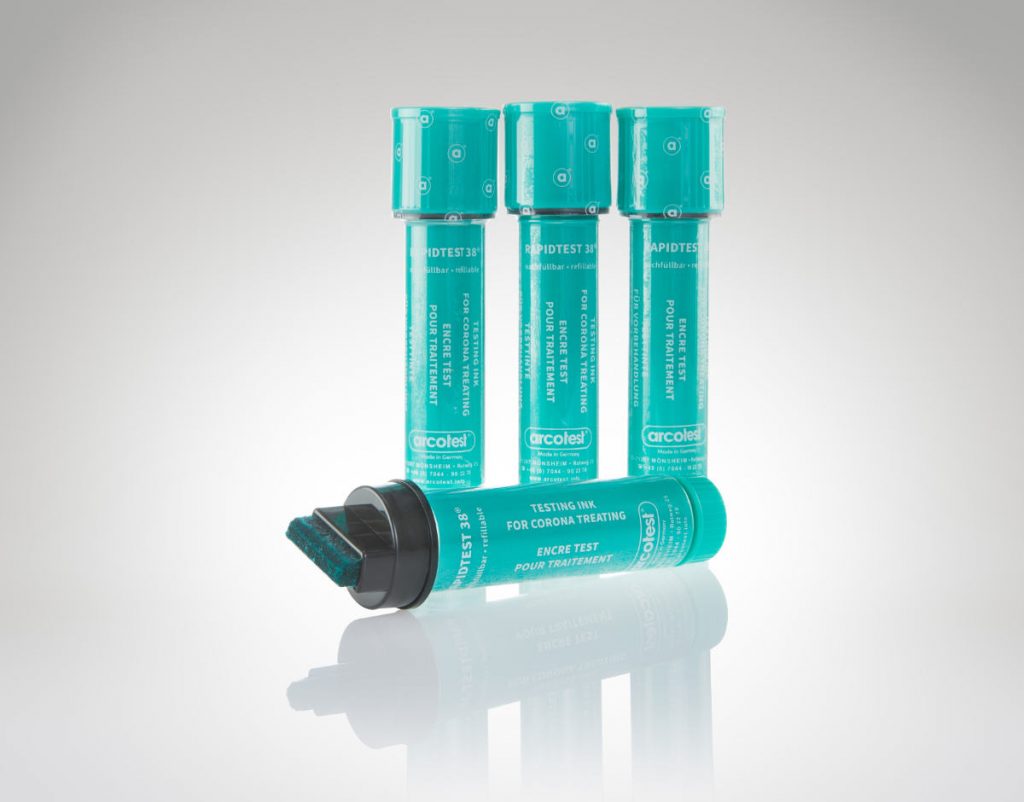

RAPIDTEST 38® Jumbo refillable

Our RAPIDTEST 38® makes it easy to test the surface tension of pre-treated plastics. The RAPIDTEST 38® enables very precise testing of the surface tension after pre-treatment of plastics such as PP and PE.

38 mN/m • 38 dyne/cm
Stroke width: 30 mm
Content: 20 ml, refillable
Ink colour: green

  • The permanent display of the test result can be stored for quality assurance purposes
  • perfect for quick checks on polyolefins
  • optimal for testing large film areas
  • easy to handle
  • Smudge-proof and waterproof
  • Dry in seconds
  • Colour-intensive, low-odour ink
• Not harmful to the environmen
• Does not cause eye damage
• Not harmful to health

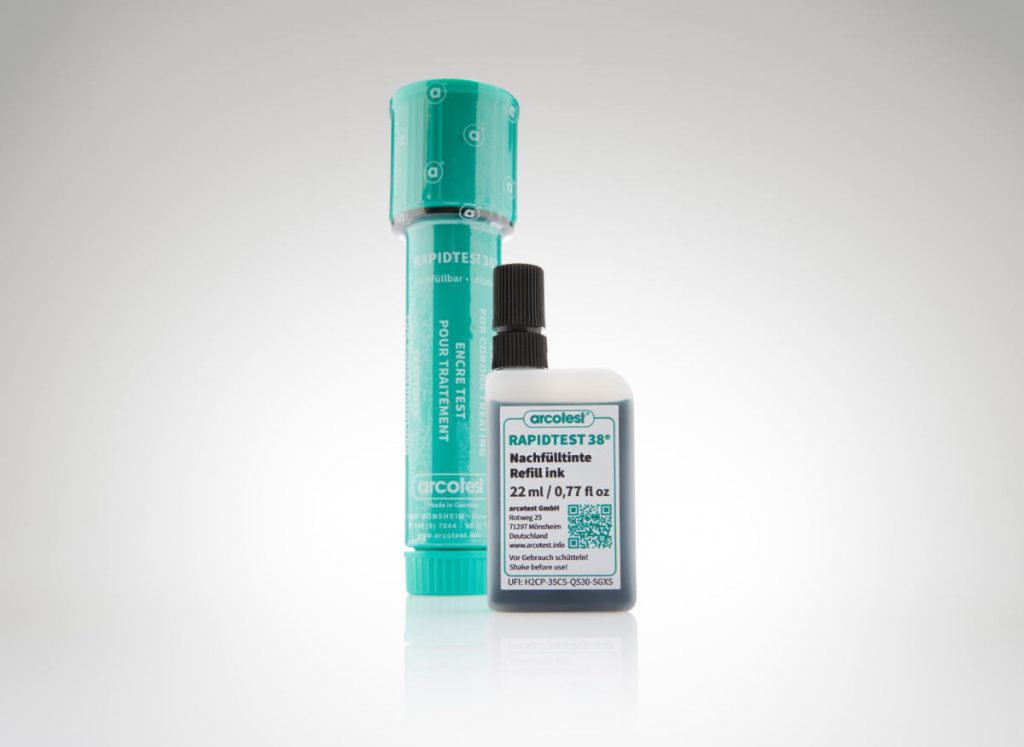

RAPIDTEST 38 Refill INK
The RAPIDTEST 38® is a particularly easy-to-use test device that has proven itself in daily use by manufacturers of films and moulded parts.

The RAPIDTEST 38® test ink is suitable for corona, plasma and flame testing.
A treatment can be recognised immediately by a closed colour stroke; necessary corrections to the pre-treatment can be deduced from the beading of the test ink.

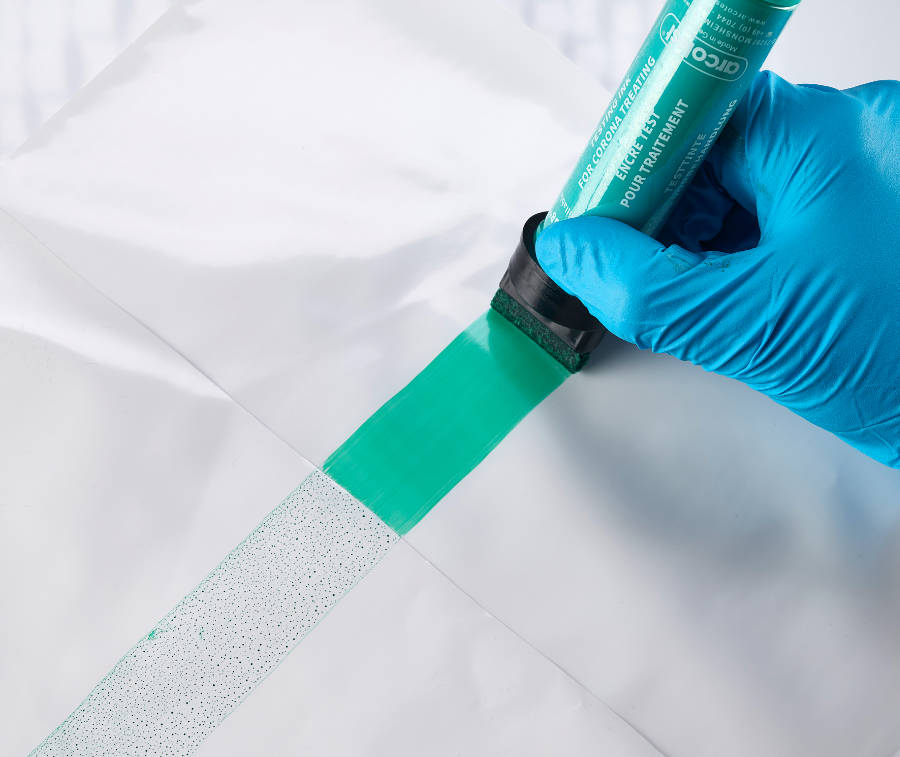

RAPIDTEST nachfuellbar Anwendung
arcospray 1
no. art. 40.80238.0

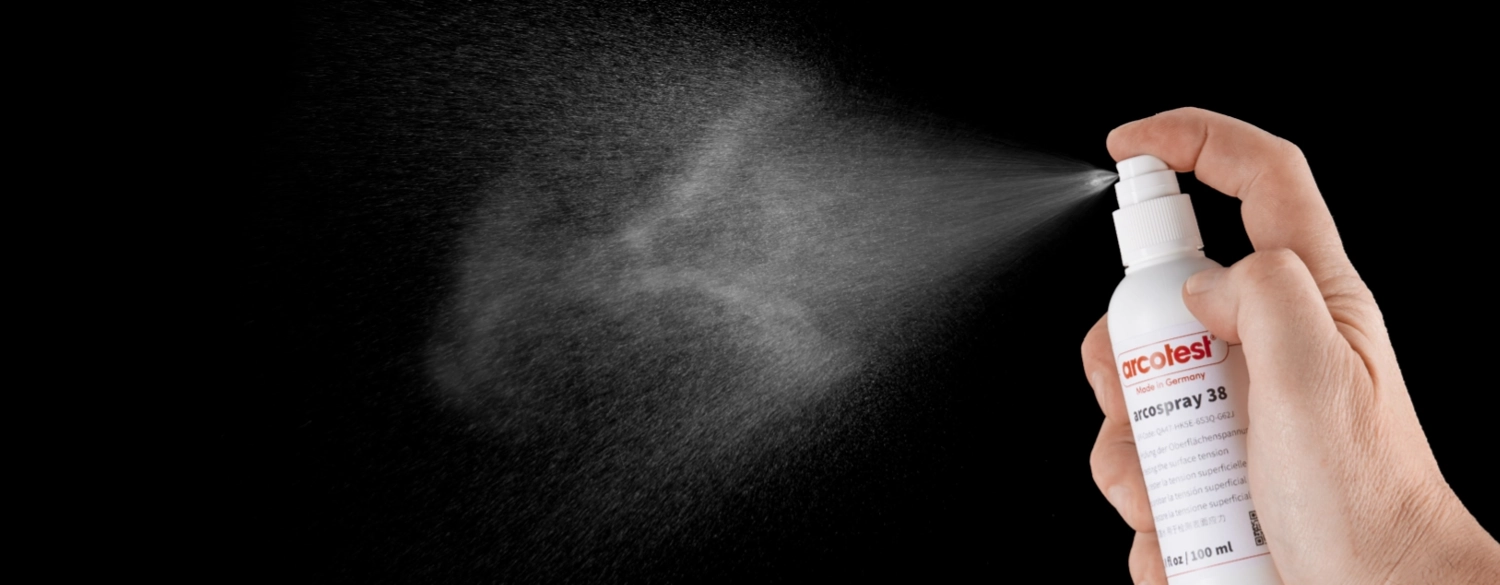

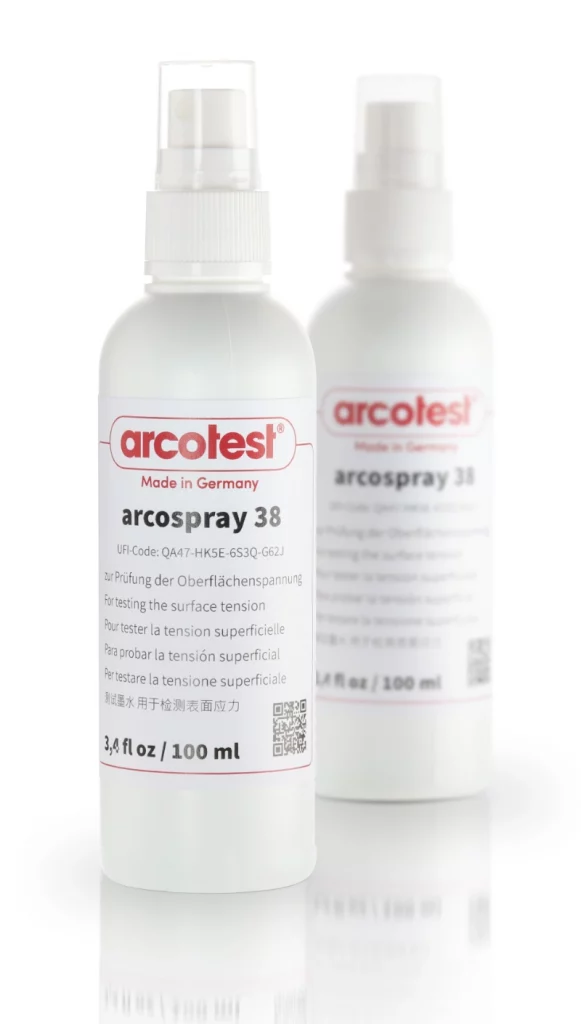

arcospray® 38

The arcospray® 38 test ink is a test liquid with a surface tension of 38 dyne/cm. It has been designed to quickly detect whether the surface is grease-free, as values equal or greater than that mean freedom from grease. After its application, arcospray® 38 can be removed without residue using oil-free clean blower air (compressed air).
Tested parts can be used further.
Not only large areas, but also very small areas, such as chain links, can be assessed quickly and easily by the arcospray® 38.

38 mN/m • 38 dyne/cm
with accuracy +/- 1.0 dyne/cm
Available in spray bottles
3,4 fl oz / 100 ml

UFI-Code: QA47-HK5E-6S3Q-G62J

  • ideal for very small and large surfaces
  • simple handling
  • Non-toxic
  • Not harmful to the environment
  • Not harmful to health
  • residue-free testing of surfaces
  • Easy spraying of the arcospray ink
  • Result visible within 2 seconds
  • non-contact surface testing

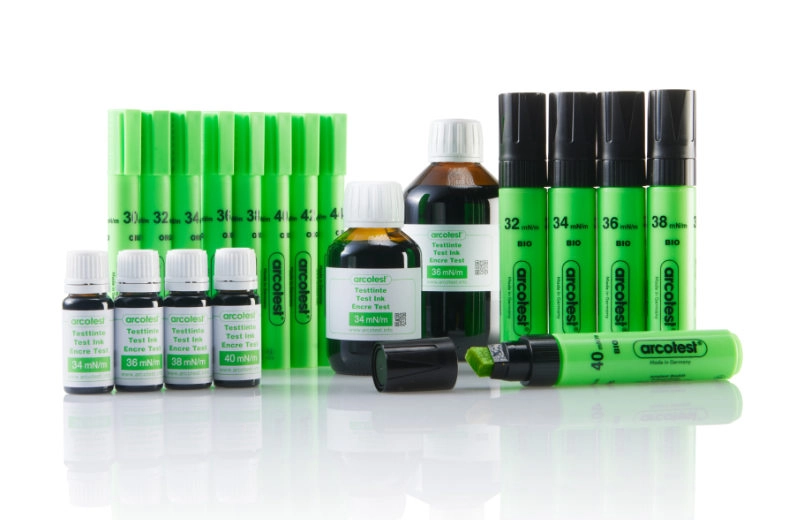

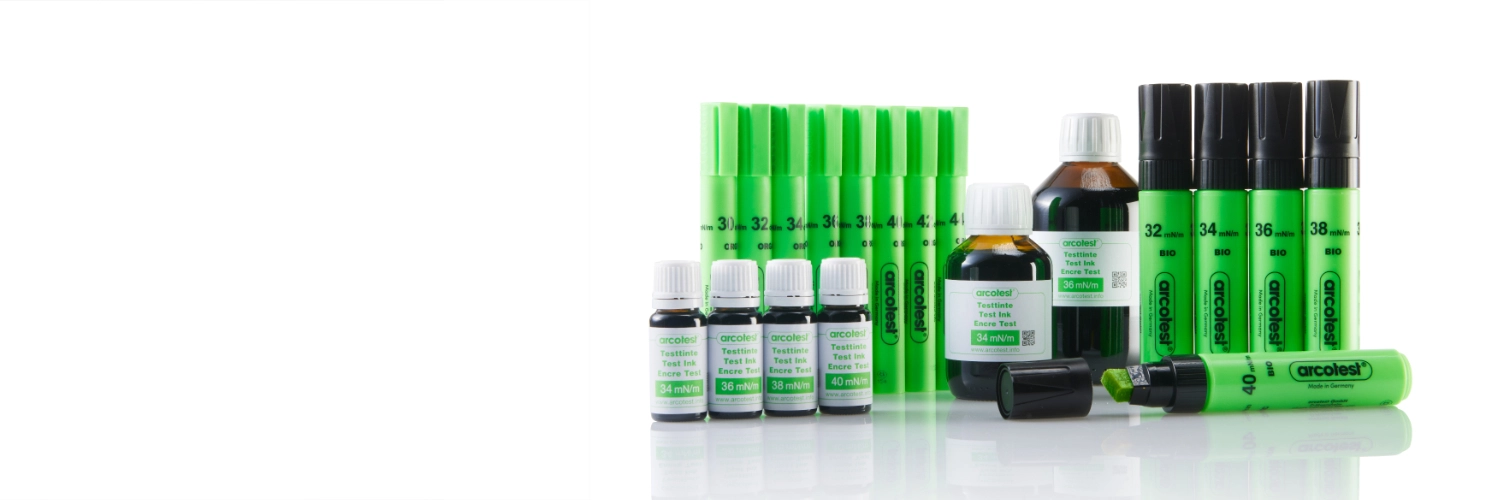

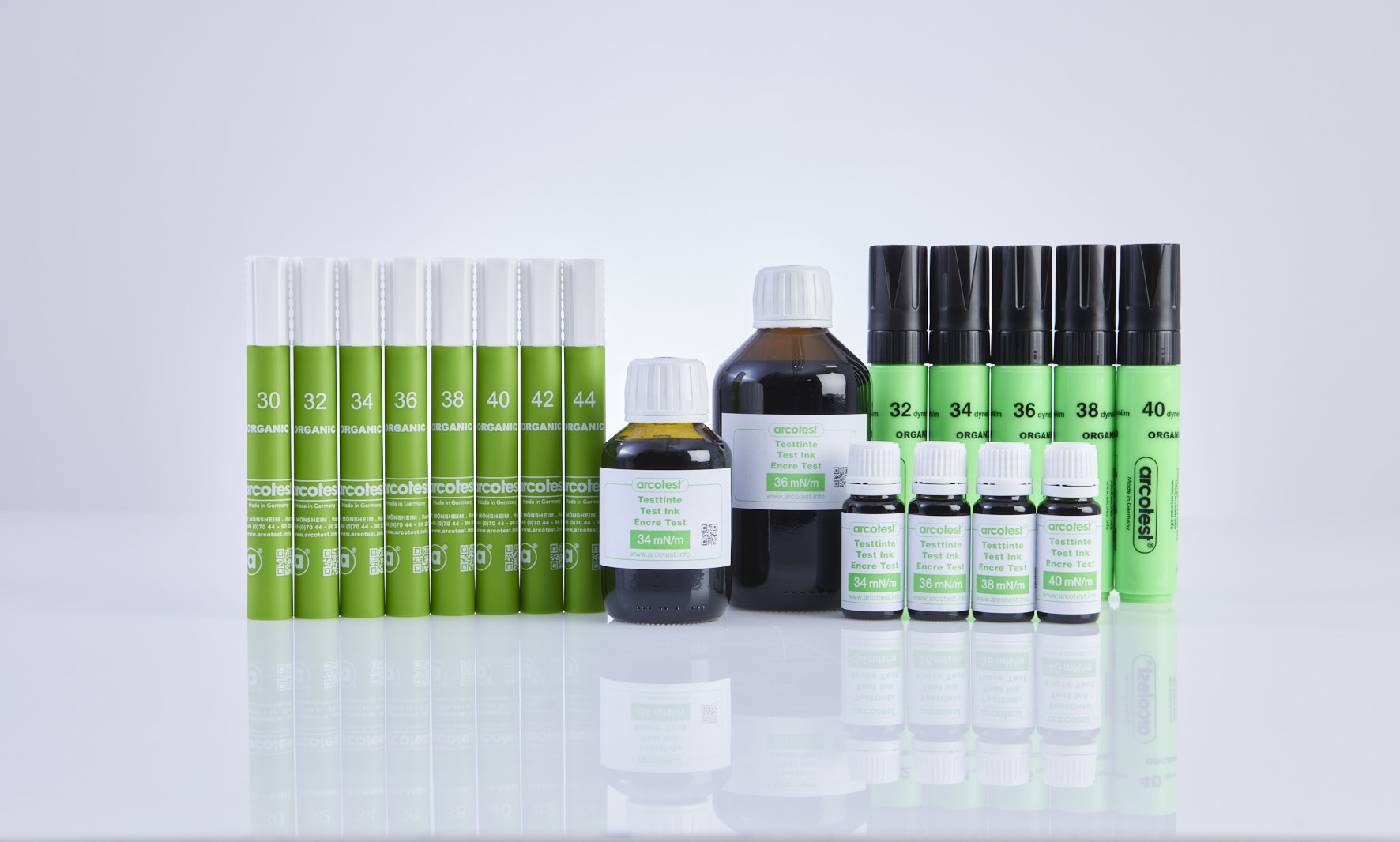

Test Inks ORGANIC

  • Available in a range of 30 to 46 dyne/cm surface tension
  • Available in bottles, pens or arcoweb®
  • ORGANIC test inks are label-free according to the Hazardous Substances Regulation (EC) No. 1272/2008 (CLP)
Non-toxic
Not poisonous
Not subject to labelling
Not harmful to the environment
ORGANIC 1

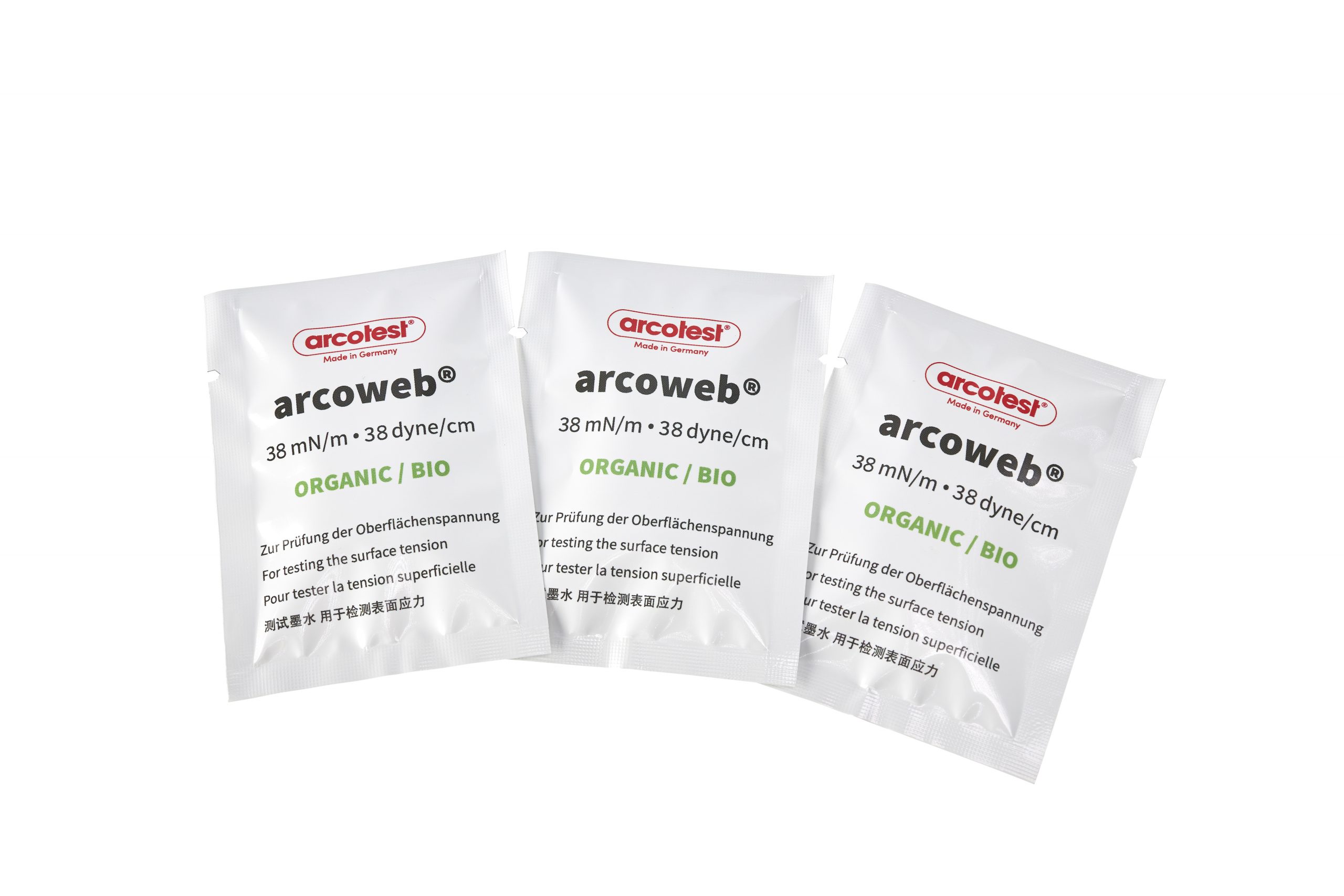

Arcoweb bag

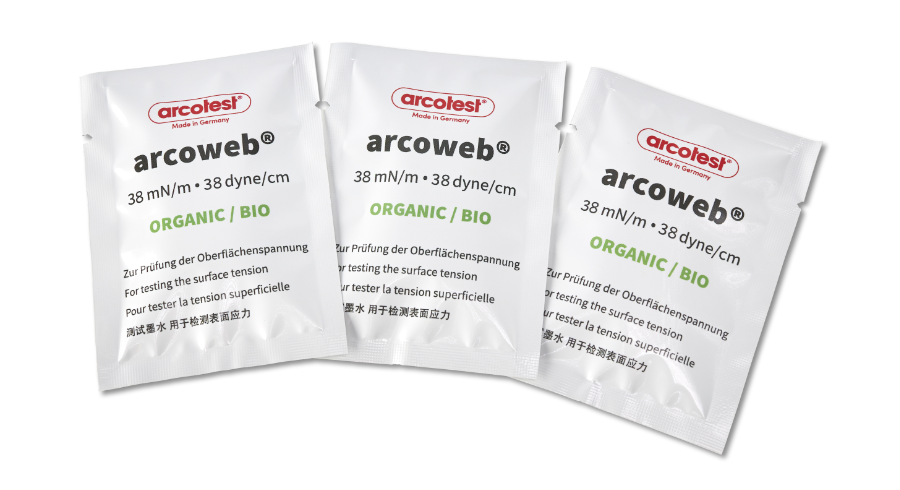

Test Inks ORGANIC – disposable cloth
Testink

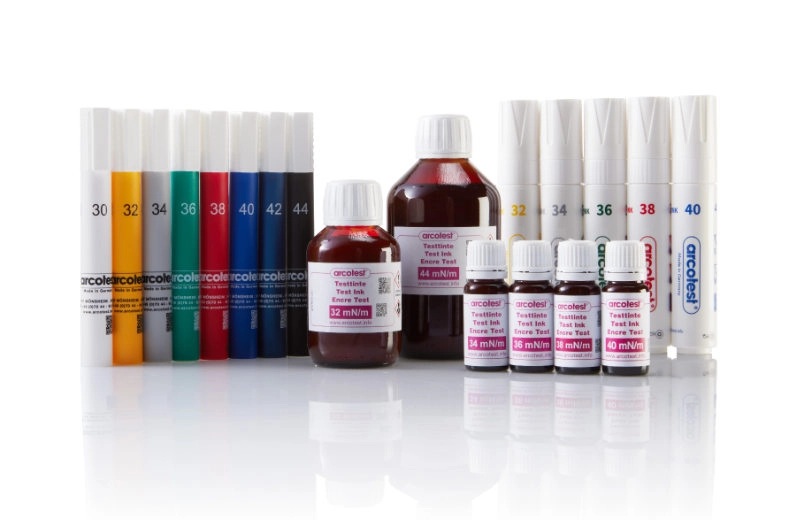

Dyne Test Inks PINK

  • Available in a range of 22 to 60 dyne/cm surface tension
  • Available in bottles or in pens
  • PINK test ink is non-poisonous
BLAU

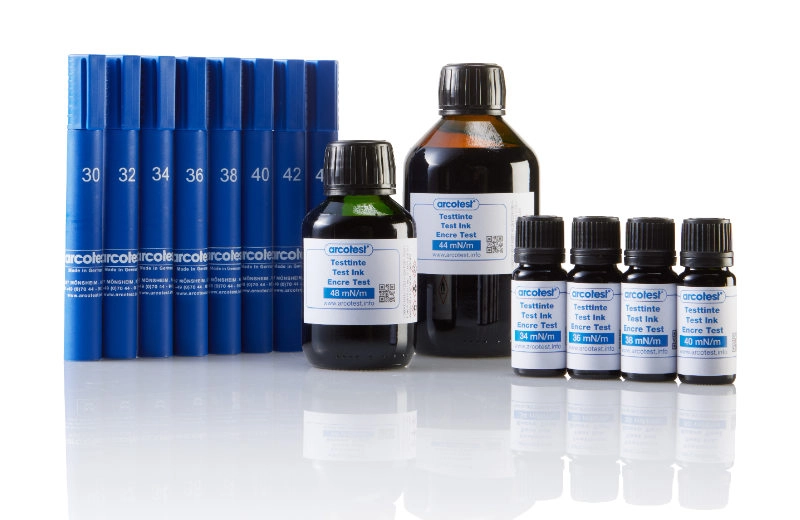

Dyne Test Inks BLUE

  • Available in a range of 18.4 to
    105 dyne/cm surface tension
  • Available in bottles or in
    pens (28 to 72 dyne/cm)
  • According to ISO8296, DIN 53364
  • Toxic from 24 to 57 dyne/cm
Corona Pens

QUICKTEST 38®
RAPIDTEST 38®

  • Available in 38 dyne/cm
  • Available as 5 ml or 15 ml pens

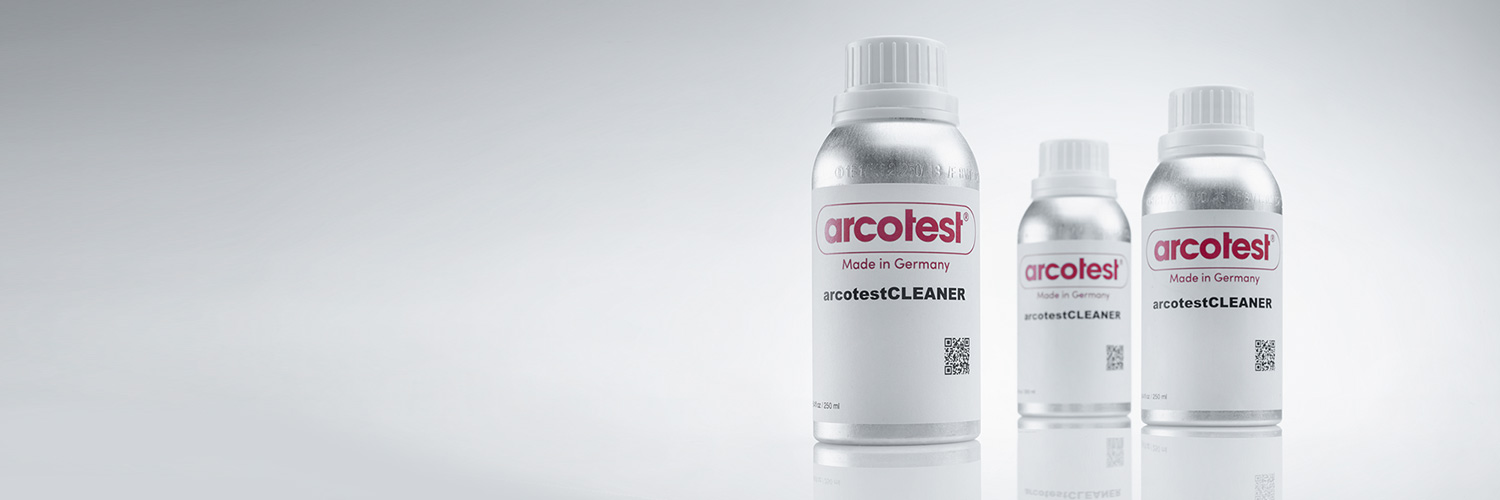

arcotestCLEANER l

arcotestCLEANER

is a solution based on ethyl alcohol. It serves to improve cleanliness on various surfaces such as metals, glass and plastics. With the arcotestCLEANER also tested parts can be reused by wiping off the test ink. As the surfaces formulations are very different, a suitability test should be carried out before each application.

• better cleanliness due to surface cleaning
• Solvent system based on ethyl alcohol
• no unpleasant odour
• dries very quickly

• can clean and possibly increase adhesion-strength in one step
• increase adhesion strength
• easy cleaning of the applied test inks
• available in 250 ml aluminium bottles

Testink

arcotest GmbH since 1976.

We are manufacturers of test inks.
We offer a comprehensive overall program of inks, pens and accessories.

Service

Expert advice, guarantee of the given values, reliable and prompt delivery, cooperation with our customers at home and abroad have been our absolute priority for 49 years.

Quality Assurance

For quality assurance, the inks are tested using a state-of-the-art contact angle measuring device, taking temperature and density into account. Safety data sheets provide information on handling, storage and transport regulations.

Purchase orders

Orders in writing by post, Email or the contact form.

Testing of a polyolefin film for 38 dyne/cm

RAPIDTEST 38® serves to check if the treatment of polyolefins has shown an effect onto the material. A stroke of the pen leaves a full line on thematerial if thematerial’s surface tension has a value of 38 dyne/cm or more. The fluid applied to the surface will dry within seconds, it does not need to be wiped off anymore.
